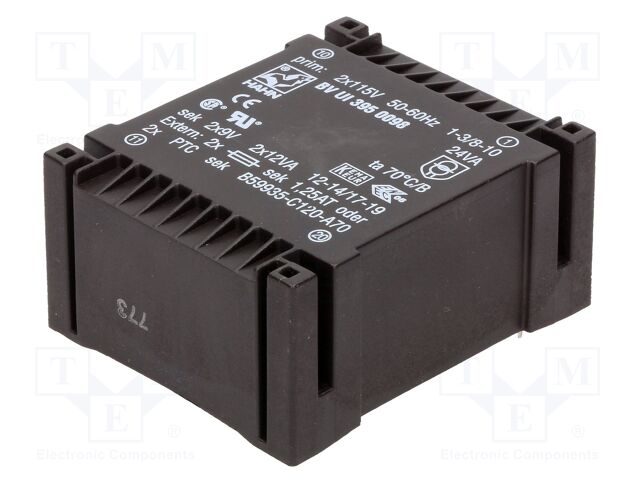

HAHN BV UI 395 0098 | Transformer: encapsulated; 24VA; 115VACx2; 9V; 9V; 1333mA; 1333mA

HAHN . BV UI 395 0098

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHAHN
CategoryL1Transformers and Ferrite Cores
CategoryL2PCB transformers
Extra Product NameHAHN BV UI 395 0098 | Transformer: encapsulated; 24VA; 115VACx2; 9V; 9V; 1333mA; 1333mA
atoms, moq, multiple, tierMinQty11
jsonUrlDatabaa49e0332536833a9a186a3bffe7f43.
jsonUrlData2952d302d3a0c97598fd1
keywordsHAHN, BV UI 395 0098, BVUI3950098, Transformers and Ferrite Cores, PCB transformers
MPNBV UI 395 0098
qtyInStock22
SKUBVUI3950098
snippetHAHN BV UI 395 0098 | Transformer: encapsulated; 24VA; 115VACx2; 9V; 9V; 1333mA; 1333m
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice118.21
tierPrice217.3
tierPrice316.05
tierPrice414.57
Type of transformerencapsulated
Power24VA
Primary voltage115V AC x2
Secondary voltage 1, Secondary voltage 29V
Secondary winding current 11.333A
Secondary winding current 21333mA
MountingPCB
Conform to the normPN EN 61558-2-6:2000
Thermal classTa70C/B
Body dimensions68.2x57.3x32mm
Manufacturer seriesBVUI

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEBVUI395009812211 @ $18.21, 5 @ $17.30, 25 @ $16.05, 100 @ $14.57
