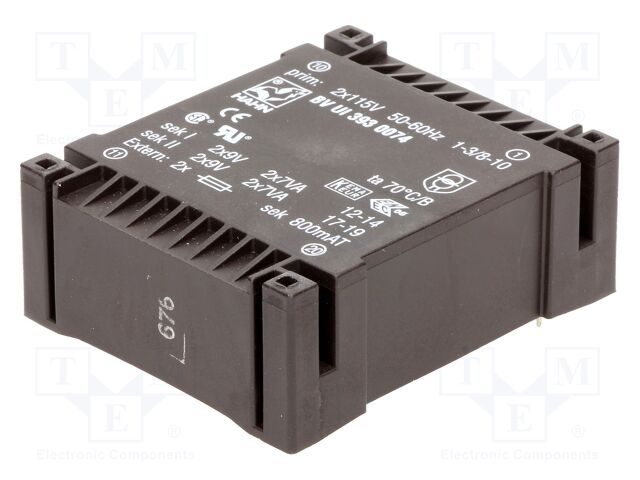

HAHN BV UI 393 0074 | Transformer: encapsulated; 14VA; 115VACx2; 9V; 9V; 778mA; 778mA; PCB

HAHN . BV UI 393 0074

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHAHN
CategoryL1Transformers and Ferrite Cores
CategoryL2PCB transformers
Extra Product NameHAHN BV UI 393 0074 | Transformer: encapsulated; 14VA; 115VACx2; 9V; 9V; 778mA; 778mA; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData66edf7a560b3f8fd71554d5a0cd6b067.
jsonUrlData2dcea378694618f203a55
keywordsHAHN, BV UI 393 0074, BVUI3930074, Transformers and Ferrite Cores, PCB transformers
MPNBV UI 393 0074
qtyInStock415
SKUBVUI3930074
snippetHAHN BV UI 393 0074 | Transformer: encapsulated; 14VA; 115VACx2; 9V; 9V; 778mA; 778mA; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice113.84
tierPrice213.21
tierPrice312.17
tierPrice411.13
Type of transformerencapsulated
Power14VA
Primary voltage115V AC x2
Secondary voltage 1, Secondary voltage 29V
Secondary winding current 1, Secondary winding current 2778mA
MountingPCB
Conform to the normPN EN 61558-2-6:2000
Thermal classTa70C/B
Body dimensions68.2x57.3x25.2mm
Manufacturer seriesBVUI

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEBVUI3930074141511 @ $13.84, 5 @ $13.21, 25 @ $12.17, 100 @ $11.13
