Lantronix . SD2101002-11

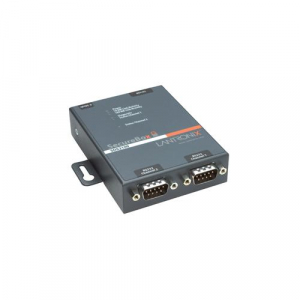

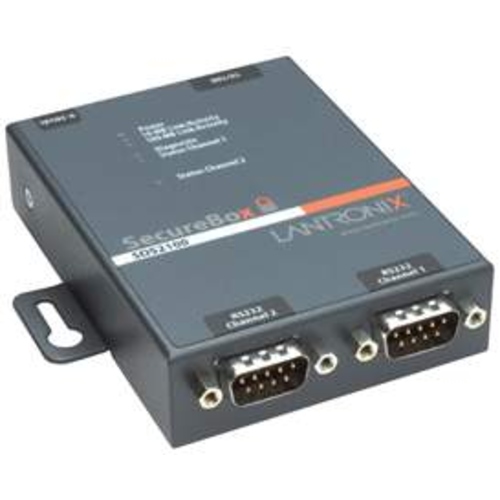

Lantronix SecureBox SDS2101 Device Server

Lantronix SecureBox SDS2101 Secure device server offers the most secure way to add formerly isolated electronic equipment to the Ethernet network and has desktop form factor. The Lantronix SD2101002-11 securebox 256KB RAM DSTNI-EX device server securely enables network serial device with 128-256 bit AES-certified encryption. Easy to install and implement, suitable for commercial applications where secure data communications are essential, medical facilities, government agencies and financial institutions. It has 2 DB9M DTE serial port connectors with software selectable Ethernet speed of 10/100/Auto. The server works with Lantronix's secure com port redirector software to extend the functionality of COM port-based windows applications across Ethernet. Lantronix DSTNI-EX 48 MHz clock, 256KB zero wait state SRAM, 2MB flash. Dimensions: 0.9"H x 2.8"W x 3.7"D. 2 X Serial, RJ-45. Power: 9-30 VDC on barrel connector (1.8 W maximum consumption). Meets FCC, C/UL, CSA, VCCI, CE,TUV, Ctick standards. Ethernet technology: Fast Ethernet, 10/100Base-TX, Transmission speed: 100 Mbps. Characters: 7 or 8 data bits, Parity: odd, even, none, Stop bits: 1 or 2, Control signals: CTS/RTS (hardware), Flow control: XON/XOFF (software). Form factor: Desktop. Protocols: ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP and RFC2217, Management: Lantronix DeviceInstaller GUI, Serial login, SNMP. Includes software. Weight: 0.4 kg. Serial interface: Interface: Software-selectable RS232, RS422 or RS485 (2 and 4 wire support), Connectors: 2 DB9M DTE serial-ports, Data rates: Software-selectable baud rate from 300 to 921 KBaud. Serial line formats: Characters: 7 or 8 data bits, Parity: odd, even, none, Stop bits: 1 or 2 control. 2MB flash. Compliant and standards: FCC, C/UL, CSA, VCCI, CE,TUV, Ctick. Weight: 14.11 oz. Warranty: 2 years limited.
