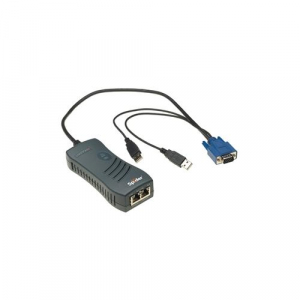

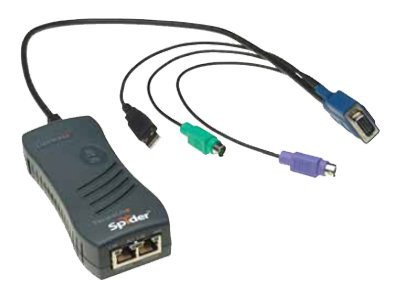

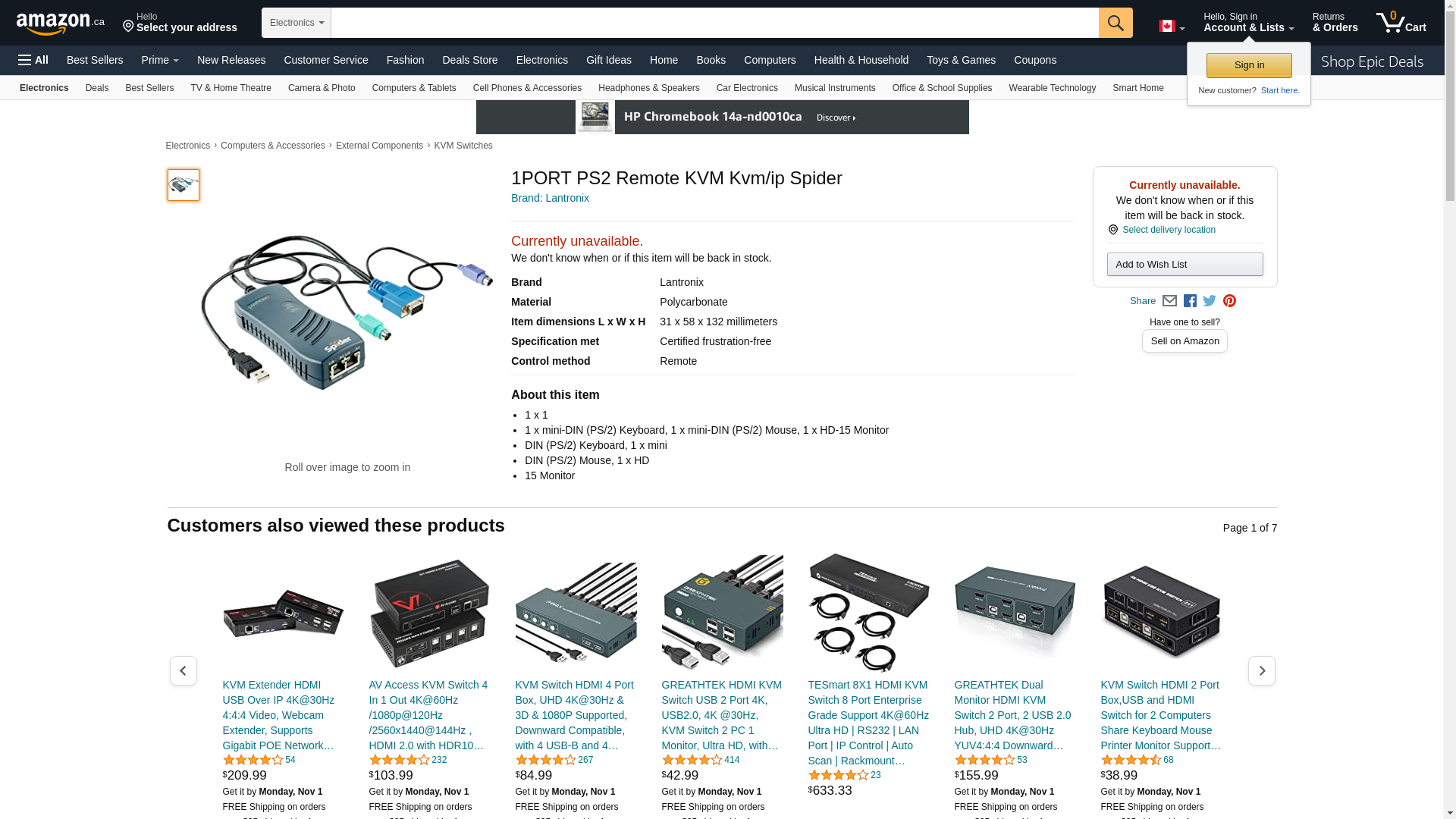

Lantronix Spider 1 Port Remote KVM-over-IP with PS/2 and USB Connectors

Lantronix KVM over IP Switch- Advanced Server Control SecureLinx spider provides secure KVM (keyboard, video, mouse) server management over an IP network, unlike any other product on the market, spider offers a flexible, scalable and affordable CAT5-based remote access KVM solution in a cable friendly. Connects devices (from/to): Computer to keyboard/mouse/video. Number of ports: 1. Connectors: 1 x keyboard- generic- 6 pin mini DIN (PS/2 style), 1 x mouse- generic- 6 pin mini DIN (PS/2 style). PC connectors: Ethernet 10base T/100Base TX- RJ 45 female network, ethernet 10base T/100Base TX- RJ 45 female cascading, VGA- 15 pin HD D sub (HD 15) video, 4 pin USB type A male USB, 1 x serial- RS 232. Number of computers supported: 1. Video resolution: 1280 x 1024 at 60 Hz frequency. Port selection support: Hotkeys. Form factor: External. Power/keyboard/mouse 2 USB ports, or 1 USB, 1 PS/2 keyboard, and 1 PS/2 mouse connector. Power: 5 VDC, 0.8 A max. System requirements: Apple MacOS X, Linux, Microsoft Windows 98/2000, Microsoft Windows Server 2003, Microsoft Windows Vista, Microsoft Windows XP, UNIX. Graphic mode: HD15 VGA. IP source address filtering, remote authentication LDAP, RADIUS, active directory, user/Group management with permissions control, configurable port numbers (HTTP, HTTPS, Telnet, SSH), selective disable of Telnet/SSH. Temperature: 0- 45 deg C (operating),- 20- 70 deg C (storage), humidity: 0- 80% RH. Certification and standards: UL/CUL (CSA 22.2 No. 60950 1 03 / UL 60950 1), CE- IEC 60950 1, C tick, FCC part 15, equipment class A, VCCI V 3/2006.04 class A, AS/NZS CISPR 22: 2006 class A, AS/NZS CISPR 22: 2006 class A, RoHS compliant (lead free). Includes: Lantronix secureLinx spider 1 port USB KVM over IP, null modem DB9F to RJ45 serial cable, mounting kit, quick start guide, product CD, warranty/registration card. Weight: 6.53 oz. Warranty: 2 years. Control your server from anywhere in the world with the Lantronix KVM over IP switch.

<br><h3>Model</h3><strong>Brand: </strong>Lantronix<br><strong>Model: </strong>SLS200PS20-01<br><br><h3>Spec</h3><strong>Type: </strong>RJ-45<br><strong>PC Connectors: </strong>1 x 6-pin mini-DIN (PS/2) Keyboard<br><strong>Console Connectors: </strong>1 x RJ-45 Female Network<br><strong>Computer Connections: </strong>1 Port<br><strong>Monitor Connections: </strong>1 Port<br><strong>Dimensions: </strong>5.20" Height x 2.28" Width x 1.22" Depth<br><strong>Weight: </strong>0.4 lbs.<br><br><h3>Features</h3><strong>Power Features: </strong>5 V DC Device Input<br><br><h3>Manufacturer Warranty</h3><strong>Parts: </strong>2 years limited<br><strong>Labor: </strong>2 years limited<br>

SLS200PS20-01 SecureLinxSpider 1-Port Remote KVM-over-IP, Interface Module
