SRR1050A-220Y Bourns Inc. | Inductors, Coils, Chokes | DigiKey

Attributes

Brand name, Manufacturer name, Manufacturer, MfrBourns Inc.
DimensionUnitinch
Extra Product NameSRR1050A-220Y Bourns Inc. | Inductors, Coils, Chokes | DigiKey
atoms, moq, multiple, tierMinQty11
extraShipping0
height0.201
height_AttribHeight - Seated (Max)
MPNSRR1050A-220Y
qtyInStock802
SKU6155154

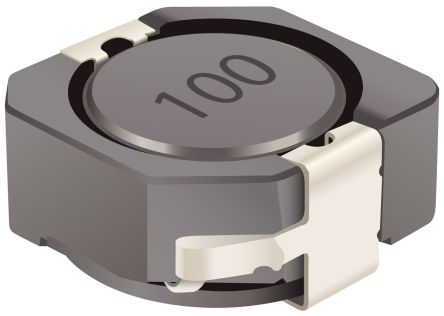

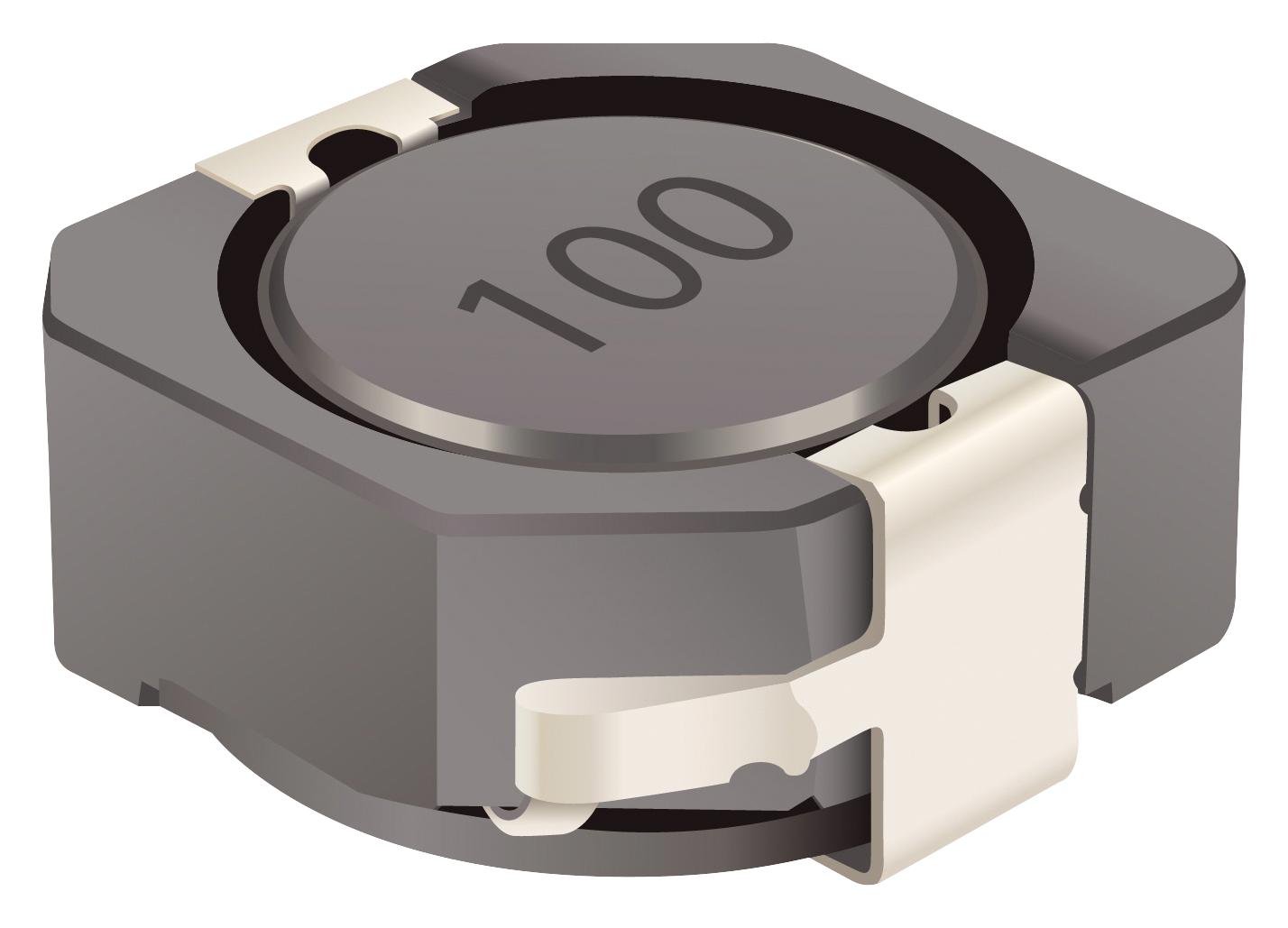

snippet22 ?H Shielded Drum Core, Wirewound Inductor 2.9 A 62mOhm Max Nonstandard
tierMinQty107,000
tierMinQty210
tierMinQty325
tierMinQty450
tierMinQty5100
tierMinQty6250
tierMinQty93,500
tierPrice11.5984999999999998
tierPrice100.59400
tierPrice21.4800499999999999
tierPrice31.3661999999999999
tierPrice41.1384999999999998
tierPrice51.07019
tierPrice60.95634
tierPrice90.61380
CategoryInductors, Coils, Chokes
Series, Base Product NumberSRR1050A
PackageTape & Reel (TR)
Product StatusActive
TypeDrum Core, Wirewound
Material - CoreFerrite
Inductance22 ?H
Tolerance?30%
Current Rating (Amps)2.9 A
Current - Saturation (Isat)2.95A
ShieldingShielded
DC Resistance (DCR)62mOhm Max
Q @ Freq-
Frequency - Self Resonant10.5MHz
RatingsAEC-Q200
Operating Temperature-40?C ~ 125?C
Inductance Frequency - Test100 kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max)0.201" (5.10mm)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key6155154180211 @ $1.60, 10 @ $1.48, 25 @ $1.37, 50 @ $1.14, 100 @ $1.07, 250 @ $0.96
Allied Electronics70912967700700
Newark96Y9741111 @ $0.95, 10 @ $0.89, 25 @ $0.83, 50 @ $0.72, 100 @ $0.67, 250 @ $0.62
RS Online135603811
RS Delivers135-6038101010 @ $0.79, 100 @ $0.60, 250 @ $0.57, 500 @ $0.51, 1000 @ $0.46
Digi-Key615528425014102501 @ $1.56, 10 @ $1.45, 25 @ $1.34, 50 @ $1.12, 100 @ $1.05, 250 @ $0.94
Digi-Key6155410180211 @ $1.60, 10 @ $1.48, 25 @ $1.37, 50 @ $1.14, 100 @ $1.07, 250 @ $0.96, 700 @ $0.82, 1400 @ $0.73, 3500 @ $0.61, 7000 @ $0.59
Newark94Y3593170011 @ $0.42, 10 @ $0.42, 25 @ $0.42, 50 @ $0.42, 100 @ $0.42
